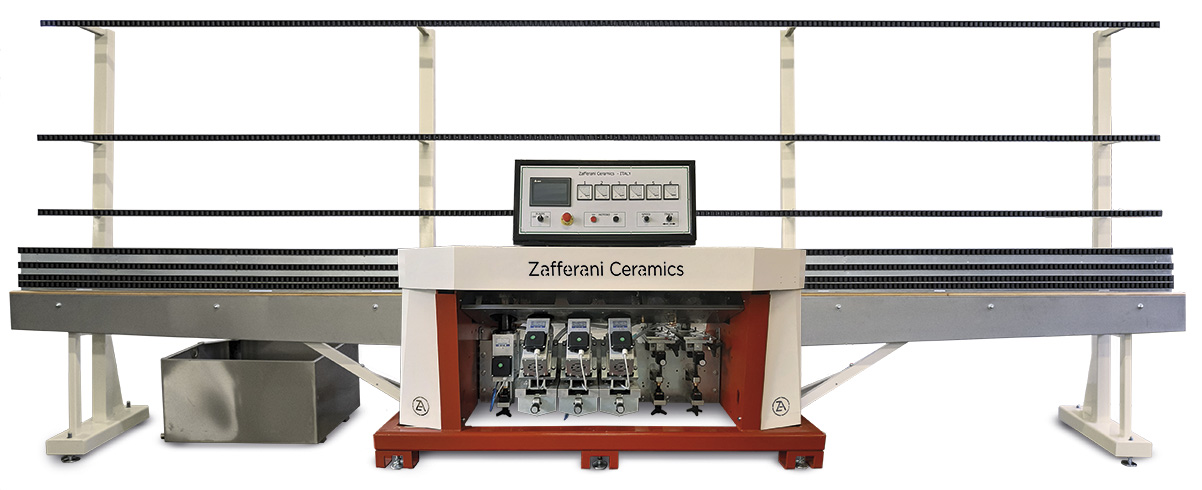

Serie FX

Configurable machines for processing every type of ceramic sheet

The FX Series by Zafferani Ceramics was created flexible to also guarantee your company can work with porcelain stoneware and industrial ceramic ranging in thickness from 3 to 30 mm,according to your processes. .

CREATED FLEXIBLE

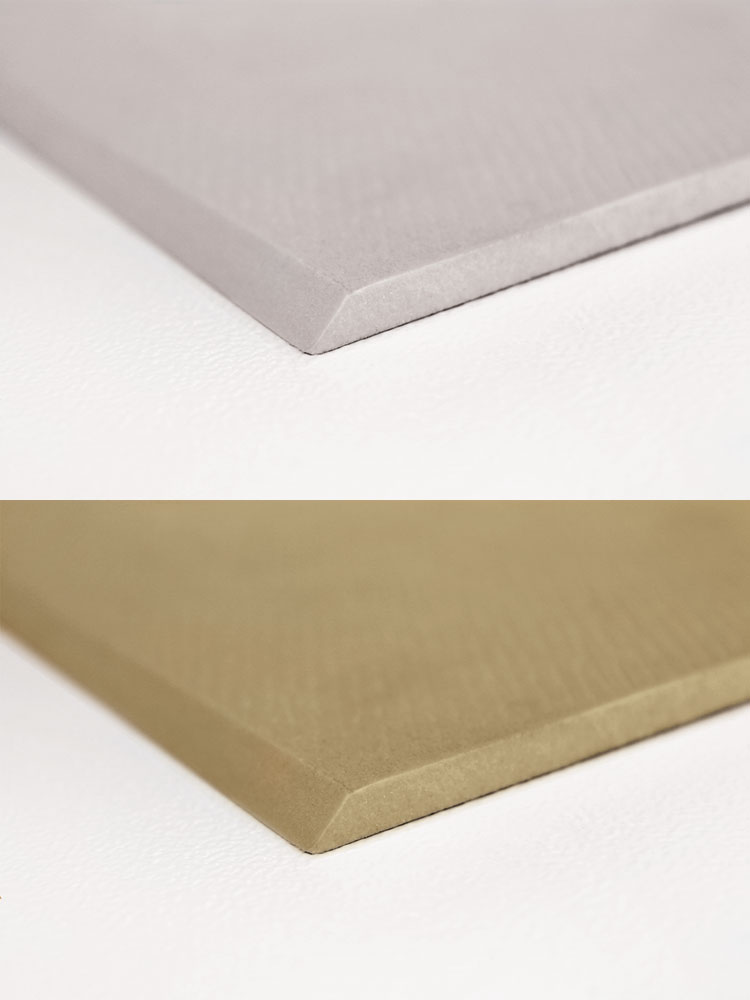

Flexibility, for Zafferani Ceramics, is configuring a grinder according to your production requirements. You can choose from 3 models: 4, 5 or 6 grinding wheels. Then, you decide the sequence and the type of spindle units (Type 1, Type 2, Type 3) for: surface grinding, bullnose processing bird’s beak processing, 45-degree grinding and any other profile possible. Automatic movement of the benches, inbound and outbound, and the grinding wheel units of the FX series machines will allow strip processing with a minimum height of 30 mm.

IN LINE WITH ITALIAN STANDARD INDUSTRY 4.0
The FX Series by Zafferani Ceramics meets Italian Industry 4.0 standards and is ready to be integrated in the company network. It is equipped with a touchscreen and PLC for work order management and control from remote.

READY FOR EVERY CHALLENGE
FX is a complete series, with the basic models FX4, FX5 and FX6 for processing sheets from 3 to 20 mm thick and with models FX430, FX530 and FX630 for sheets up to 30 mm thick.
